Growth And Decay Of Current In Lr Circuit. Decay of current in an inductive circuit. This causes an induction of e.m.f.
PPT RL Circuits Current Growth And Decay PowerPoint from www.slideserve.com
A cube of side b has a charge q at each of its vertices. When a battery is connected across a pure inductance, the current builds up to its final value at a rate determined by the battery voltage and the internal resistance of the battery. Growth and decay of current in lr circuit [ inductance resistance ] | b.sc.
Growth and decay of current in lr circuit growth of current 1 and 2 are connected current through circuit at any time t at t =0, i = 0 at t = ∞ , i = io = As the time increases, the current in the inductor decreases, the voltage also increases. “the time at which the value of growing current in circuit becomes 63% of maximum current is called inductive time constant” the term l/r in the equation is called the time constant, ( Ï„ ) of the rl series circuit, get by using v=ir and v=li/t relation and it is defined as time taken by the current to reach its maximum steady state value and the term v/r.
Rising and falling of current in a circuit is called growth and decay of electric circuit respectively. (john 2010) theraja (2005) describes transient as the The ratio of the currents at time t = ∞ and t = 1 s is:
This Causes An Induction Of E.m.f.
This equation is called helmholtz, equation. A cube of side b has a charge q at each of its vertices. Transient curves for an lr series circuit since the voltage drop across the resistor, v r is equal to i*r (ohms law), it will have the same exponential growth and shape as the current.
When A Battery Is Connected Across A Pure Inductance, The Current Builds Up To Its Final Value At A Rate Determined By The Battery Voltage And The Internal Resistance Of The Battery.

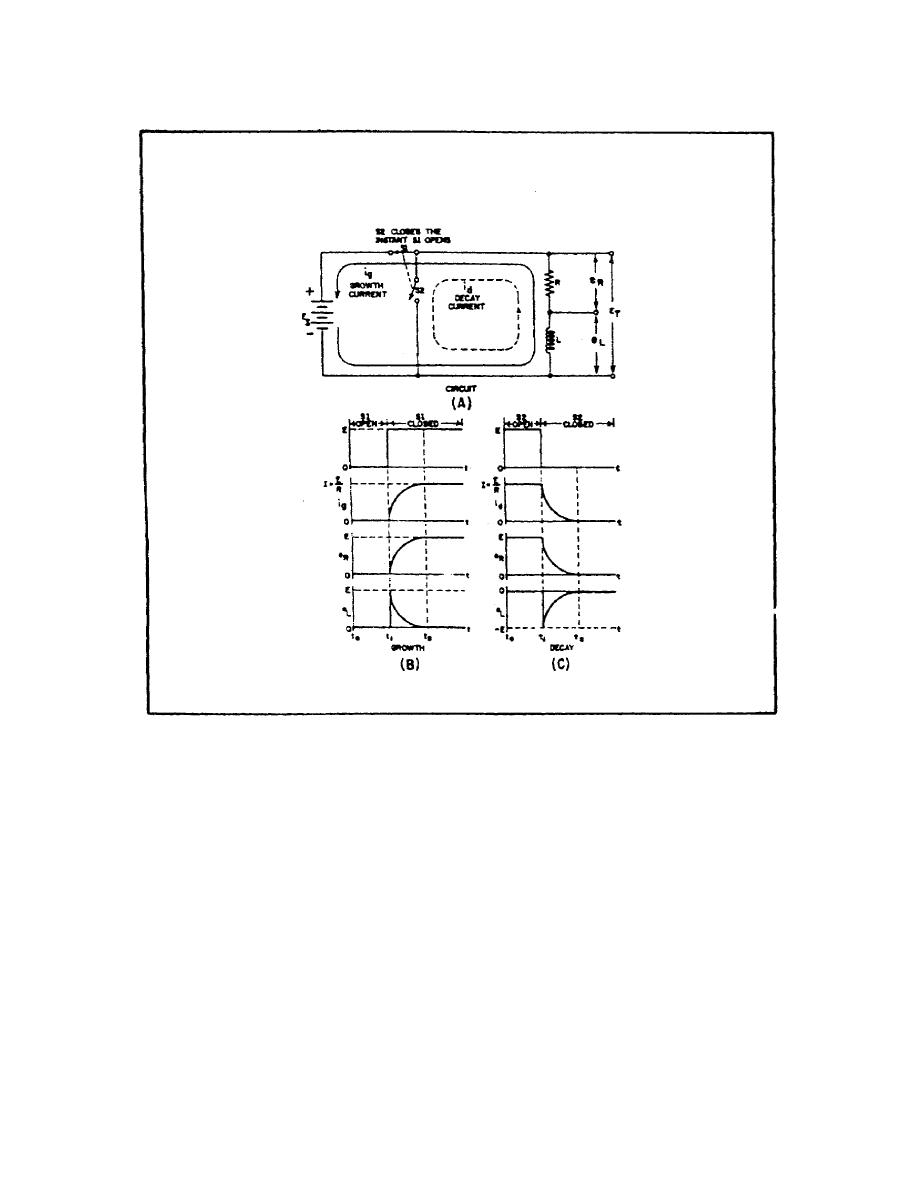

A graphical representation of the current growth representing the voltage/time characteristics of the circuit can be presented as. Since the growth and decay of current in any lr circuit follows the exponential curve, a curve developed for a specific circuit can be made to apply to any lr circuit by merely changing the values of time and current. Figure below shows a circuit containing resistance r and inductance l connected in series combination through a battery of constant emf e through a two way switch s.
Both Growth And Decay Of Current In Lr Circuit Is Inversely Proportional To Time Constant.
E through a switch s as shown. If circuit is opened from it's steady state. The intensity of electric field, due to a uniformly charged infinite cylinder of radius r, at a distance r(> ) from its axis is proportional to [mp pmt 1993]
